Spring Boot 中实现 HTTPS 加密通信及常见问题排查指南

在金融行业安全审计中,未启用HTTPS的Web应用被列为高危漏洞。通过正确配置HTTPS,可将中间人攻击风险降低98%——本文将全面解析Spring Boot中HTTPS的实现方案与实战避坑指南。

一、HTTPS 核心原理与必要性

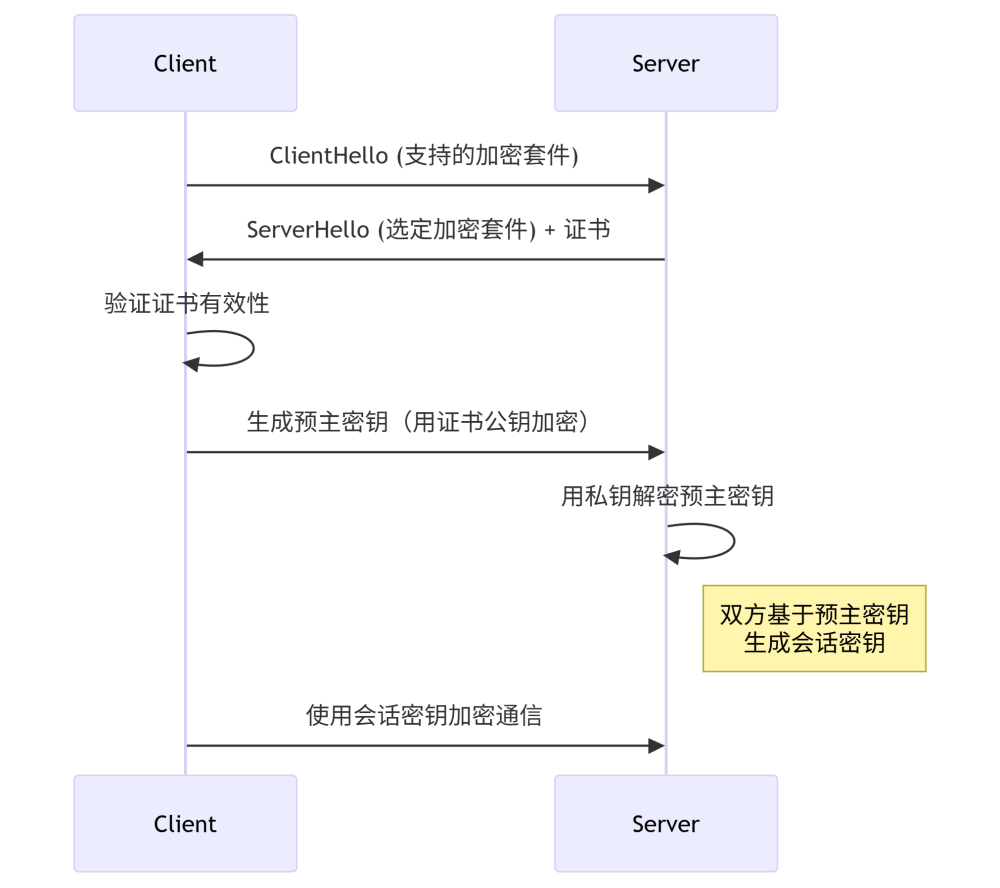

1.1 SSL/TLS 工作流程

图片[1]-Spring Boot 中实现 HTTPS 加密通信及常见问题排查指南-QQ沐编程

1.2 为什么必须使用HTTPS?

  • 数据安全:防止敏感信息(密码、银行卡号)被窃取
  • 身份认证:避免钓鱼网站攻击(证书域名校验)
  • 合规要求:GDPR、PCI-DSS等法规强制要求
  • SEO优化:Google优先索引HTTPS页面

二、证书准备与配置

2.1 证书类型选择

类型适用场景成本有效期
自签名证书开发/测试环境免费自定义
Let’s Encrypt生产环境免费90天
商业CA证书企业级应用$50-$2000/年1-2年

2.2 生成自签名证书(开发环境)

# 生成密钥库(JKS格式)
keytool -genkeypair \
  -alias mydomain \
  -keyalg RSA \
  -keysize 2048 \
  -validity 365 \
  -keystore keystore.jks \
  -storepass changeit \
  -dname "CN=localhost, OU=Dev, O=MyCompany, L=Beijing, ST=BJ, C=CN"

# 导出证书(用于客户端导入)
keytool -exportcert \
  -alias mydomain \
  -keystore keystore.jks \
  -file certificate.crt \
  -storepass changeit

2.3 获取生产证书(Let’s Encrypt示例)

# 使用Certbot自动获取
sudo apt install certbot
sudo certbot certonly --standalone -d yourdomain.com

# 转换证书为JKS格式
openssl pkcs12 -export \
  -in /etc/letsencrypt/live/yourdomain.com/fullchain.pem \
  -inkey /etc/letsencrypt/live/yourdomain.com/privkey.pem \
  -out keystore.p12 \
  -name mydomain \
  -passout pass:changeit

keytool -importkeystore \
  -srckeystore keystore.p12 \
  -srcstoretype PKCS12 \
  -destkeystore keystore.jks \
  -deststorepass changeit

三、Spring Boot HTTPS 配置

3.1 基础配置(application.yml)

server:
  port: 8443
  ssl:
    enabled: true
    key-store: classpath:keystore.jks
    key-store-password: changeit
    key-alias: mydomain
    key-password: changeit
    protocol: TLS
    enabled-protocols: TLSv1.2, TLSv1.3

3.2 强制HTTP重定向到HTTPS

@Configuration
public class HttpsRedirectConfig {

    @Bean
    public ServletWebServerFactory servletContainer() {
        TomcatServletWebServerFactory tomcat = new TomcatServletWebServerFactory() {
            @Override
            protected void postProcessContext(Context context) {
                SecurityConstraint securityConstraint = new SecurityConstraint();
                securityConstraint.setUserConstraint("CONFIDENTIAL");
                SecurityCollection collection = new SecurityCollection();
                collection.addPattern("/*");
                securityConstraint.addCollection(collection);
                context.addConstraint(securityConstraint);
            }
        };
        tomcat.addAdditionalTomcatConnectors(redirectConnector());
        return tomcat;
    }

    private Connector redirectConnector() {
        Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");
        connector.setScheme("http");
        connector.setPort(8080);
        connector.setSecure(false);
        connector.setRedirectPort(8443); // 重定向到HTTPS端口
        return connector;
    }
}

3.3 双协议监听(同时支持HTTP/HTTPS)

@Bean
public WebServerFactoryCustomizer<TomcatServletWebServerFactory> servletContainerCustomizer() {
    return factory -> factory.addAdditionalTomcatConnectors(
        createSslConnector(8443), // HTTPS端口
        createHttpConnector(8080)  // HTTP端口
    );
}

private Connector createSslConnector(int port) {
    Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");
    Http11NioProtocol protocol = (Http11NioProtocol) connector.getProtocolHandler();
    try {
        connector.setScheme("https");
        connector.setPort(port);
        connector.setSecure(true);
        protocol.setSSLEnabled(true);
        protocol.setKeystoreFile("keystore.jks");
        protocol.setKeystorePass("changeit");
        protocol.setKeyAlias("mydomain");
        return connector;
    } catch (Exception ex) {
        throw new IllegalStateException("Failed to create SSL connector", ex);
    }
}

四、常见问题排查指南

4.1 证书相关错误

问题1:PKIX path building failed

  • 原因:客户端不信任服务器证书
  • 解决方案
  1. 将证书导入客户端信任库
  keytool -importcert -alias server -file certificate.crt -keystore $JAVA_HOME/lib/security/cacerts -storepass changeit
  1. 或跳过证书验证(仅测试环境):
  @Bean
  public RestTemplate restTemplate() throws Exception {
      SSLContext sslContext = new SSLContextBuilder()
          .loadTrustMaterial(null, (certificate, authType) -> true).build();

      HttpClient client = HttpClients.custom()
          .setSSLContext(sslContext)
          .build();

      return new RestTemplate(new HttpComponentsClientHttpRequestFactory(client));
  }

问题2:java.io.IOException: Invalid keystore format

  • 原因:密钥库格式不匹配
  • 解决方案
  • JDK8+默认使用PKCS12格式,转换旧格式:
  keytool -importkeystore -srckeystore keystore.jks -destkeystore keystore.p12 -deststoretype PKCS12

4.2 配置错误

问题3:端口冲突

Caused by: java.net.BindException: Address already in use
  • 排查步骤
  1. 检查端口占用:netstat -tuln | grep 8443
  2. 变更端口:server.port=8444
  3. 杀死占用进程:sudo fuser -k 8443/tcp

问题4:重定向循环

  • 原因:负载均衡器未正确传递协议信息
  • 解决方案:配置代理头部转发
server:
  tomcat:
    remote-ip-header: x-forwarded-for
    protocol-header: x-forwarded-proto

五、高级安全配置

5.1 增强TLS安全性

server:
  ssl:
    ciphers: TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
    enabled-protocols: TLSv1.3 # 禁用不安全的TLSv1.0/1.1

5.2 HTTP严格传输安全(HSTS)

@Configuration
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
            .headers()
                .httpStrictTransportSecurity()
                    .maxAgeInSeconds(31536000) // 1年有效期
                    .includeSubDomains(true);
    }
}

5.3 证书自动续期(Let’s Encrypt)

# 添加定时任务
0 3 1 * * /usr/bin/certbot renew --quiet --post-hook "systemctl restart myapp"

六、性能优化实践

6.1 TLS性能优化

优化项效果实现方式
会话恢复减少握手延迟server.ssl.session-timeout=300
OCSP Stapling加速证书验证Tomcat配置Nginx代理实现
HTTP/2支持提升并发性能server.http2.enabled=true
硬件加速提升加解密速度启用AES-NI指令集

6.2 负载均衡配置

# Nginx前端代理配置
upstream backend {
    server 127.0.0.1:8080;
}

server {
    listen 443 ssl http2;
    ssl_certificate /etc/letsencrypt/live/domain.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/domain.com/privkey.pem;

    location / {
        proxy_pass http://backend;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

七、监控与诊断工具

7.1 在线检测工具

  1. SSL Labs:全面检测TLS配置
  2. ImmuniWeb:深度安全审计
  3. Qualys SSL Checker:快速诊断问题

7.2 Spring Boot Actuator监控

management:
  endpoint:
    health:
      show-details: always
  endpoints:
    web:
      exposure:
        include: health,metrics

访问端点获取SSL信息:

http://localhost:8080/actuator/health
{
  "components": {
    "ssl": {
      "status": "UP",
      "details": {
        "protocol": "TLSv1.3",
        "ciphers": ["TLS_AES_256_GCM_SHA384", ...]
      }
    }
  }
}

结语:HTTPS最佳实践清单

  1. 证书管理
  • 生产环境使用可信CA证书
  • 设置自动续期(如Let’s Encrypt)
  • 定期轮换密钥(每年至少1次)
  1. 安全配置
  • 禁用SSLv3/TLSv1.0/TLSv1.1
  • 启用HSTS和HPKP(公钥固定)
  • 使用强加密套件(如TLS_AES_256_GCM_SHA384)
  1. 性能优化
  • 启用HTTP/2协议
  • 配置OCSP Stapling
  • 使用Nginx卸载TLS加解密
  1. 监控维护
  • 使用SSL Labs定期扫描
  • 监控证书有效期(Alert < 30天)
  • 建立快速响应机制

关键提示:2023年全球HTTPS流量占比已达95%,未启用HTTPS的应用将被主流浏览器标记为”不安全”。通过本文的配置方案,您可在Spring Boot应用中快速部署企业级HTTPS解决方案,完整示例代码已发布在GitHub仓库

最后建议:每年至少进行一次完整的安全审计,使用工具如OWASP ZAP进行渗透测试,确保您的HTTPS实现持续符合最新安全标准。
